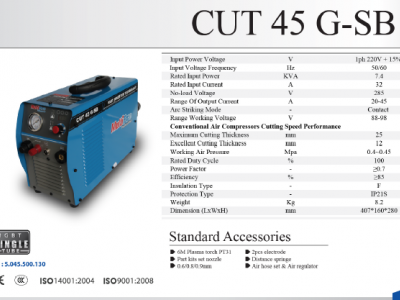

Input Voltage 1 ph 220v ±15%
Frequency 50-60Hz
Ratrd Input Power 7.4 KVA
Ratrd Input Current 32 A
No-Lond Voltage 28.5 V
Range Of Output Current 20-45 A
Arc Striking Mode Contact
Range Working Voltage 88-98V
Maximum Cutting Thickness 25 mm
Excellent Cutting Thickness 12 mm
Working Air Pressure 0.4-0.45 Mpa
Rated Duty Cycle 100%
Power Factor ≥0.7
Efficiency ≥85%
Insulation Type F
Prodection Type IP21S
Weight 8.2Kg
