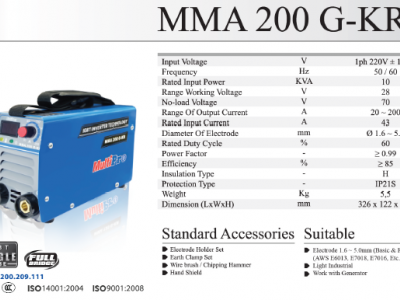

Frequency 50/60 Hz
Rated Input power 10 KVA
Range Working Voltage 28 V
No-load Voltage 70 V
Range Of Output Current 20~200 A
Ratd Input Current 43 A
Diameter Of Electrode 1.6~5.0 mm
Rated Duty Cycle 60%
Power Factor ≥0.99
Efficiency ≥ 85 %
Insulation Type H
Protection Type IP21S
Weight 5.5 KG
