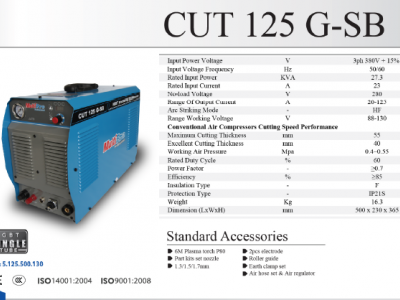

Input Voltage 3 ph 380v ±15%
Frequency 50-60Hz
Ratrd Input Power 27.3 KVA
Ratrd Input Current 23 A
No-Lond Voltage 280 V
Range Of Output Current 20-125 A
Arc Striking Mode HF
Range Working Voltage 88-130V
Maximum Cutting Thickness 55mm
Excellent Cutting Thickness 40 mm
Working Air Pressure 0.4-0.55 Mpa
Rated Duty Cycle 60%
Power Factor ≥0.7
Efficiency ≥85%
Insulation Type F
Prodection Type IP21S
Weight 16.3Kg
